Application:
Mobile Home Feeder Cable is used to provide power from the electrical disconnect to the distribution panel board in mobile home applications, suitable for direct burial in earth at conductor temperatures not to exceed 90°C.
Structure:

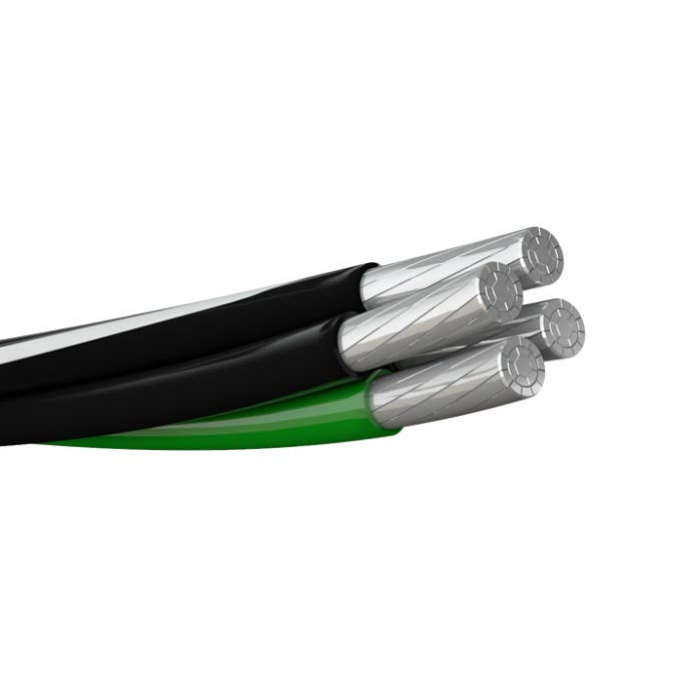

- Conductor: Aluminum Mobile Home Feeder cable has a compact strand soft drawn 8000 series aluminum conductor, per ASTM B-800 & B-801.
- Insulation: Aluminum Mobile Home Feeder cable has a type USE2/RHH/RHW-2 cross linked polyethylene (XLP) insulation. The conductors are cabled together with a green XLP insulted aluminum ground. The grounded (neutral) conductor is identified by a longitudinal white stripe.
Standard:
- UL44
- UL854
Performance:
- Sunlight resistant, moisture resistant and flame retardant insulation.
- Insulation is heavy metal free in compliance with RoHS
- Voltage：600V
- Working temperature:In wet and dry locations at temperature not to exceed 90°C.

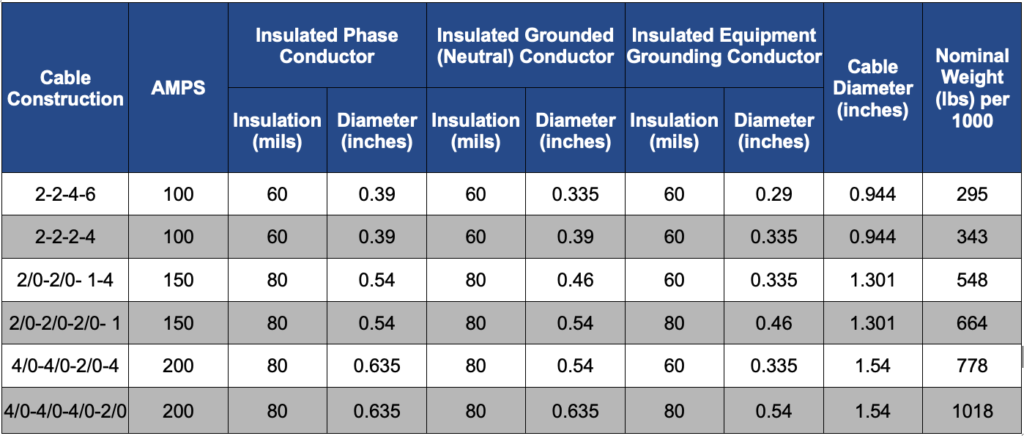

Details
| Voltage | 600V |
|---|---|
| Material | Aluminum |
| Working temperature | 90°C MAX |
