Wires & Cables

Application:

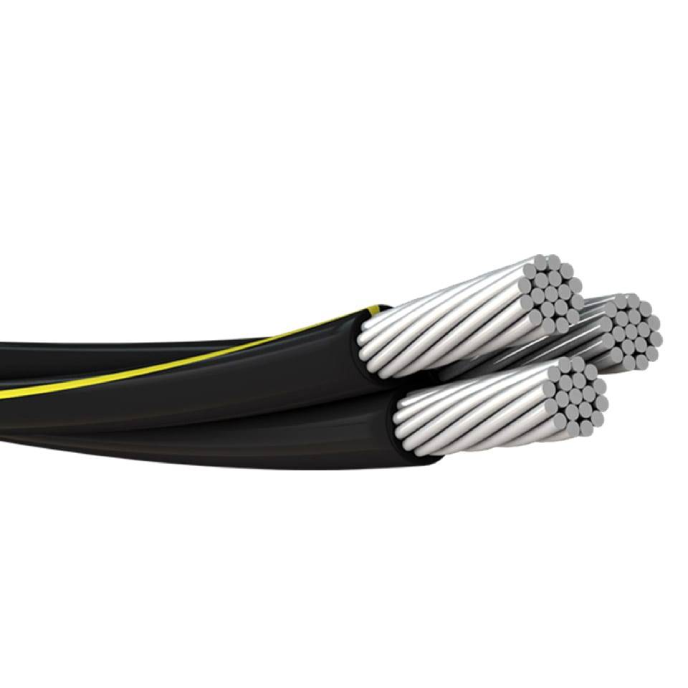

Type secondary URD cable can be used for secondary distribution and underground service at 600 volts or less, either direct burial or in ducts.

Structure:

• Conductor:

1. 1. B-230 Aluminum 1350-19 Wire for Electrical Purpose
   2. B-231 Aluminum 1350 conductors, concentric-lay-stranded
   3. B-609 Aluminum 1350 Round wire, annealed and intermediate tempers for electrical purpose
   4. B-901 Compressed round stranded aluminum conductors for using single input wire.

• Insulation:  Cross-linked polyethylene（XLPE）

Standard:

• ASTMB-230, B-231
• ASTM B-609, B-901
• UL Standard 854 requirement for USE-2
• ICEA S-105-692
• RoHS environmental conductive requirement

Performance:

Heat, ozone, oil, and chemical resistant.

Tear and abrasion resistant.

Voltage：600V

Working temperature:

in dry and wet locations at temperature not to exceed 90°C.
