Application:

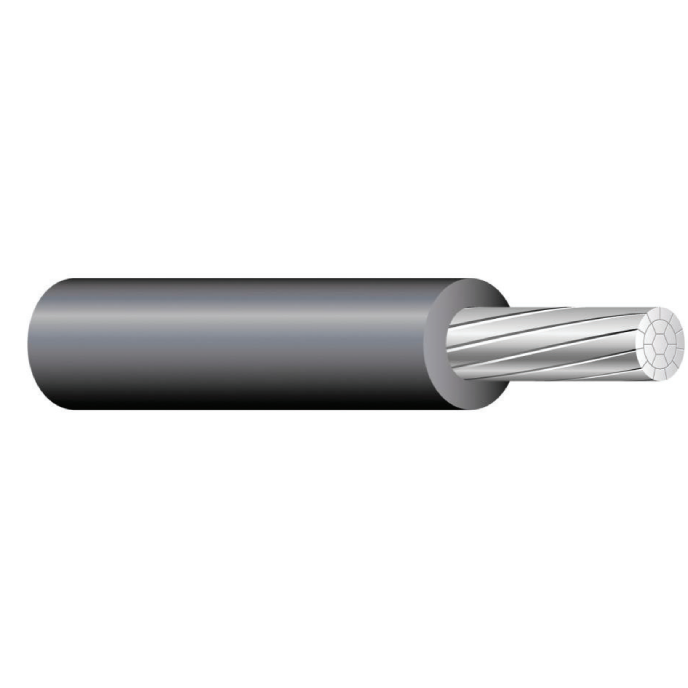

Type XHH XHHW XHHW-2 Cable consists of aluminum alloy conductor with a specially designed XLPE insulation. It can reduce half pulling force than the regular XHHW-2.Its primarily used in conduit or recognized raceways for services,feeders, and branch circuit wiring as specified in the National Electrical Code.

Structure:

• Conductor:
  1. soft plain copper, conforms to ASTM B3, B8.
  2. compact soft drawn aluminum alloy,conforms to ASTM-B-800,B-801andB-836.

• Insulation: crosslinked polyethylene (XLPE)

Standard:

• UL44

Performance:

Abrasion, heat, moisture, and flame Resistant.

Voltage：600V

Working temperature:

In dry or wet locations at temperature not to exceed 90°C.
